M7VIT Pro - BIOSTAR

PROCESSOR

Socket A
AMD Athlon™ XP , Athlon™ and Duron™ Processor
200 / 266 / 333MHz system interface speed

CHIPSET
VIA KT400 / VT8235

SPECIAL FEATURES


MEMORY
3 x 184-pin DDR SDRAM DIMM
Maximum 3.0 GB
DDR 200/266/333/400

EXPANSION SLOT
5 x PCI
1 x AGP (4X / 8X)
1 x CNR (Type B) (V3.0 W/O CNR)

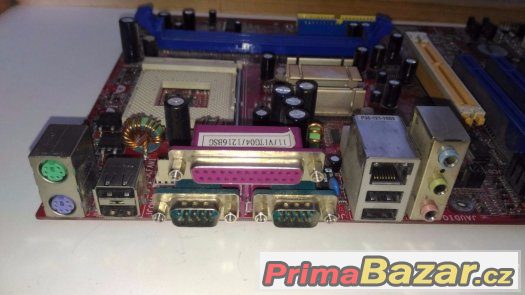

I/O
1 x Parallel, 2 x Serial
1 x PS/2 Mouse, 1x PS/2 Keyboard
2 x Rear USB 2.0
1 x Game Port, 1 x Speak-out, 1 x Line-in, 1 x Mic.-in
1 x Floppy
4 x IDE Hard Disk Devices
4 x Front USB 2.0
1x Front Audio
1x IrDA
1 x CD in
1 x S/PDIF
1 x WOL
1 x Chassis Intrusion
Ultra DMA33/66/100/133

INTEGRATED AUDIO
C-Media CMI9739A 6-Channel AC97 CODEC

HARDWARE MONITOR FUNCTION
CPU / System Fan Speed
System Voltage
CPU Temperature
System Temperature (Optional)

Vcore,+3.3V,+5V,+12V

LAN
VIA VT6103

SIZE
ATX Form Factor
Dimension: 30.5cm X 20.0cm ( W x L )


Pouze SMS! 721807606 Mail ouconer34@seznam.cz Nejlépe osobní převzetí Kladno/Praha nebo Dobírka.
