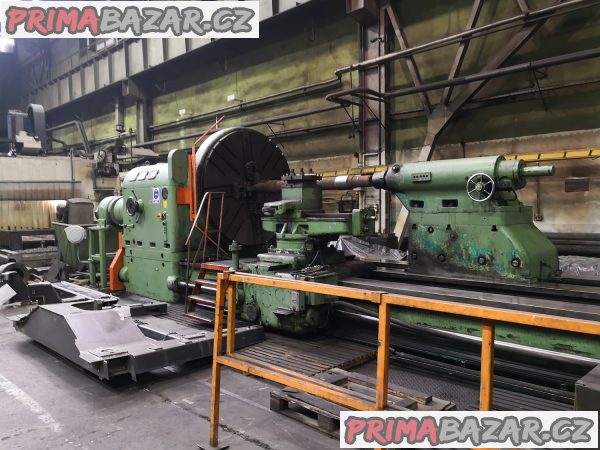

Heavy duty lathe SKODA SR200 – 2300x8000mm

Heavy duty lathe
SKODA SR200 – 2300x8000mm

-Make: Czech Republic
-Year of manufacture : 1975
-Type of control: conventional
-Technical state: used, very good, still under power, after agreement ready for inspection and to test.

Specifications:
-Max. swing over bed: 2300 mm,
-Max. turning diameter over slide rest: 1900 mm,
-Max.workpiece length: L=8000 mm,
-Bed width (guide bed): 2190 mm,
-Faceplate diameter (4-jaw chuck): 2 000 mm,
-Max. workpiece weight between centers: max. 60 000 kg,
-Spindle speed range: 0,45 - 90 r/min
-Swiveling angle of tool post: ± 90º,
-Feeds of the lathe: 0,18-5,6
-Main motor: 60 kW,
-Weight of machine: 36 400 kg,
-Overall dimensions:
L = 14,5m,
B = 3,60m,
H = 2,95m

Equipment:
-faceplate 2000 mm diameter,
-taper turning device: 1 pcs,

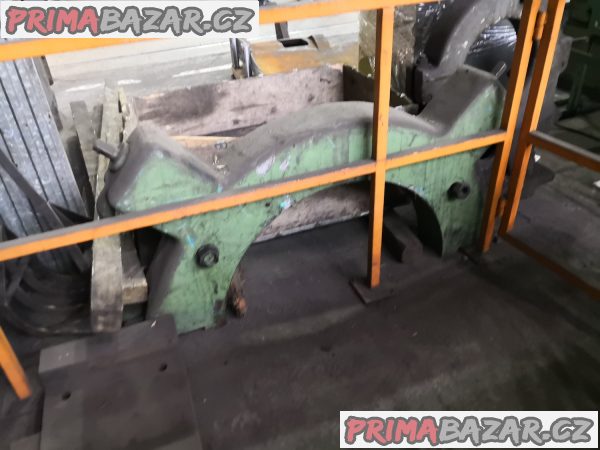

-self-centering rest: 1 pcs

Modernization in 2008:
-Repair of the machine_s mechanical transmission,
-exchange of the electric guidance,

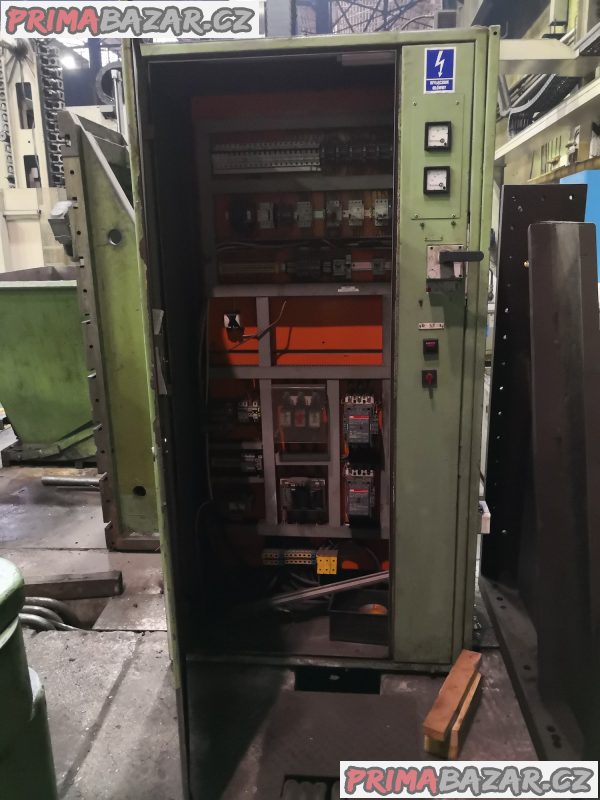

-new electric cabinet,
-exchange of the installation of the lubrication,

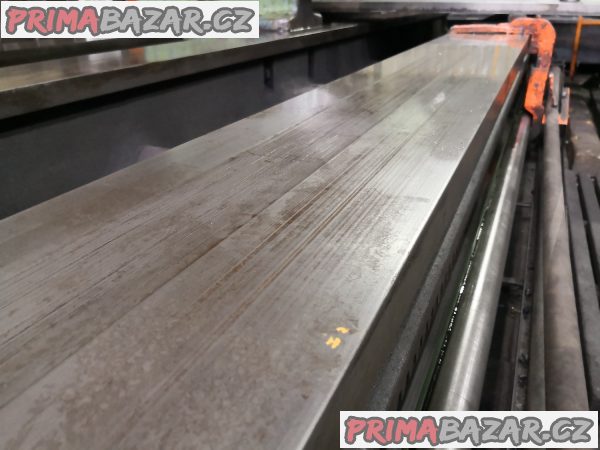

-bed grinding and exchange of sliding elements,
-picking the working space up above the large bed and the saddle for 300 mm

The advertisement is for information purposes only. Ask for an offer.
